Excellent & well thought out audio interface – just the thing to bring vintage audio equipment into the digital music age & it does that very well.
We’ve tested so many of these things over the last few years & they are getting better all the time – this is the latest model to impress us enough that we’re making them available on our website.
A lot of care has been taken in the design of this product. Some points to note are:
- Dedicated music device – no flashy lights & buttons – just does what you want it to whilst hiding out of sight.
- Excellent sound quality – thanks to the Qualcomm 5125 chipset & the onboard PCM5102A DAC.
- Supports LDAC (Quality), LDAC (normal), LDAC (connection), aptX HD, aptx Lossless, aptX, AAC, SBC codecs
- Bluetooth 5.0
- Isolated power circuits to eliminate background noise.
- Quality audio grade components.
- Robust construction.
- USB powered or via external plug-in power pack.
- Gold plated everything to eliminate corrosion & provide the best connection possible.
- 2.4G Bluetooth – 30m range – however our testing shows that it’s best within 10-15m.

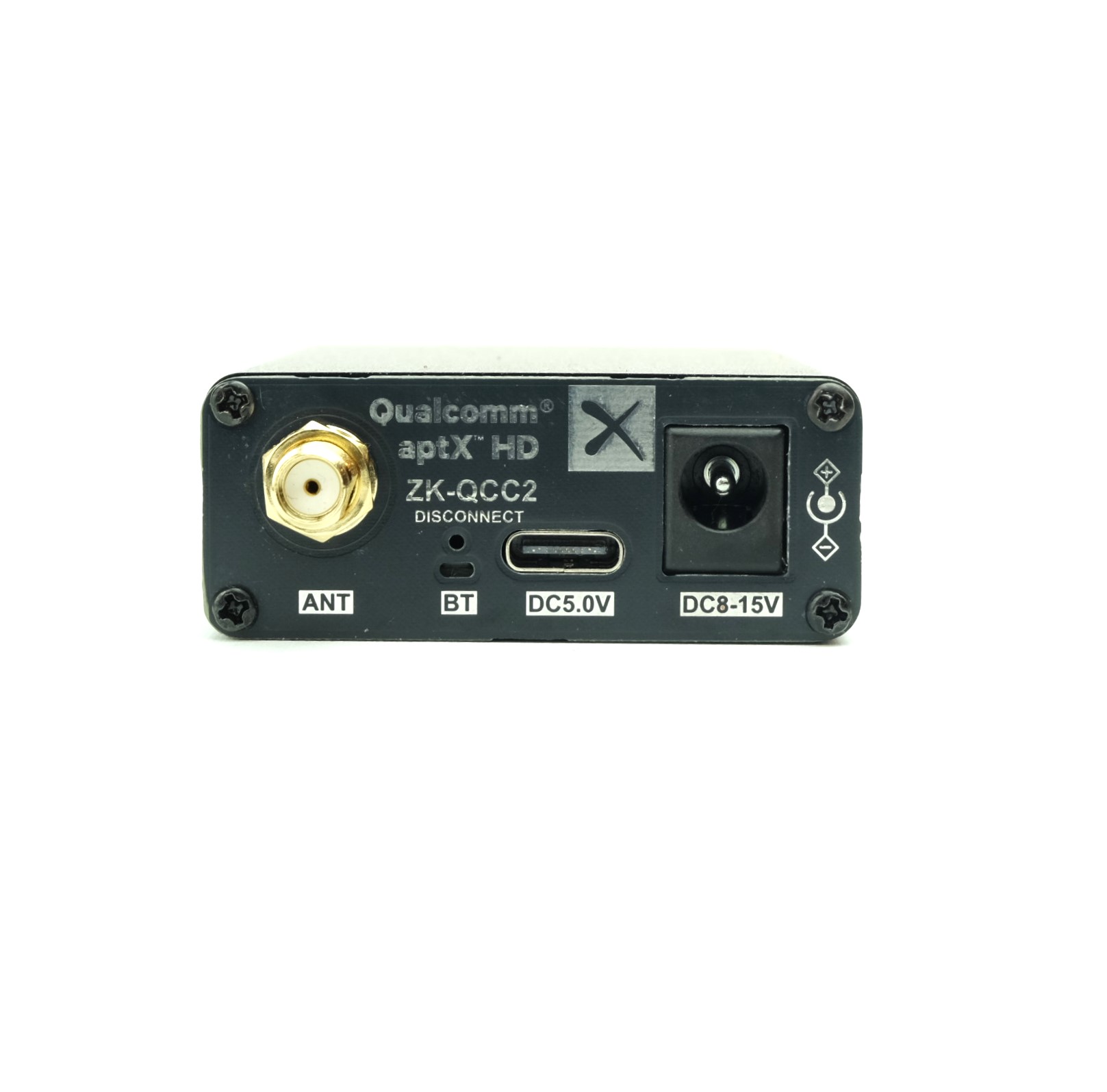

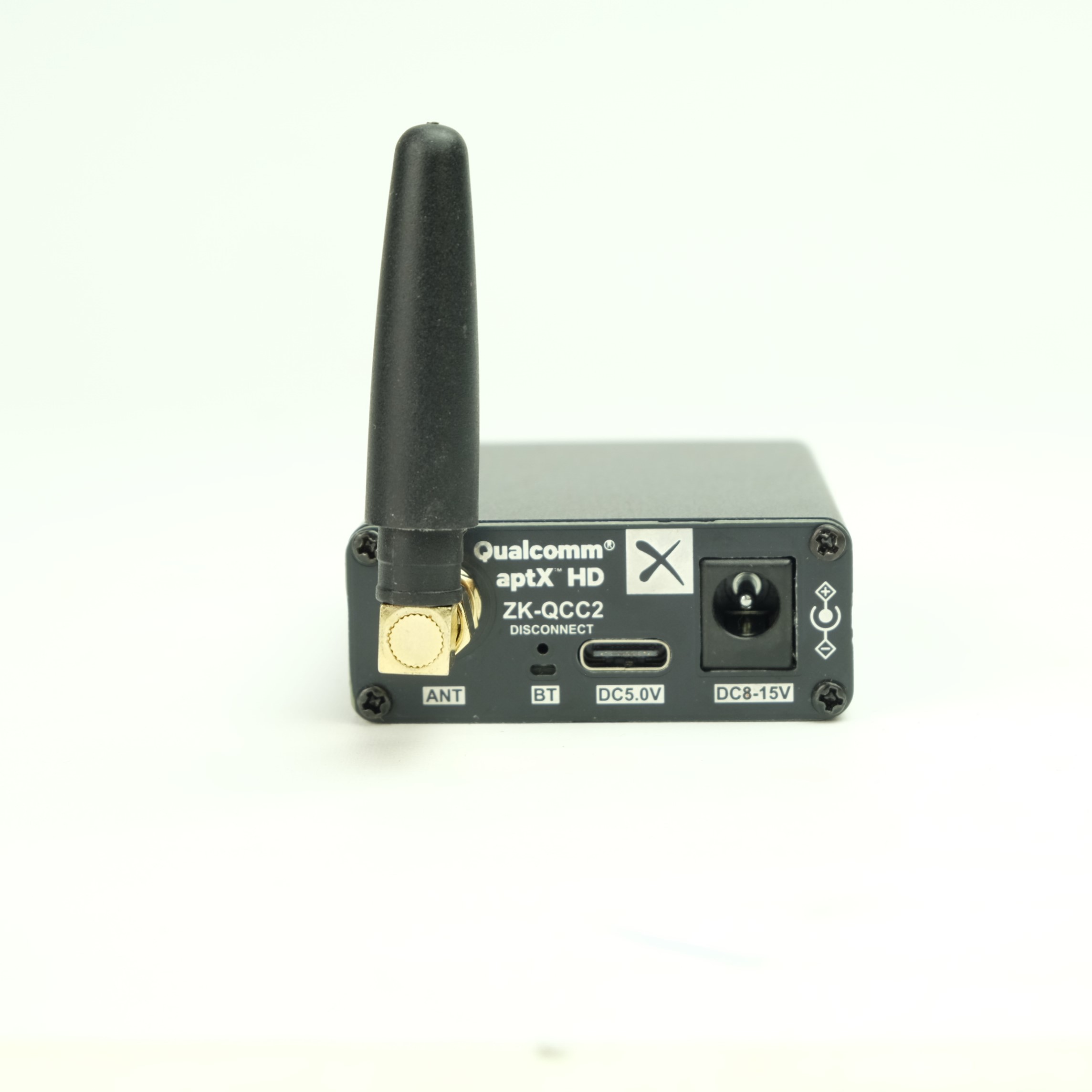

- USB-C Data port.
- Signal-to-noise ratio 112dB. Output 2v.
- Bluetooth disconnect button – just in case someone connects & you’d rather they didn’t..
- Does not have an inbuilt lithium battery – that’s a good thing.
Add to that – this unit can also be used as a USB sound card on computer devices – information is passed digitally from PC to the Audio Interface via USB-C connection. So you’ll be able to take advantage of the units superior audio path instead of using a computer/laptop etc in-built sound card.
If you listen to music from an old laptop or Chromebook. Tablet etc – that’s great news!

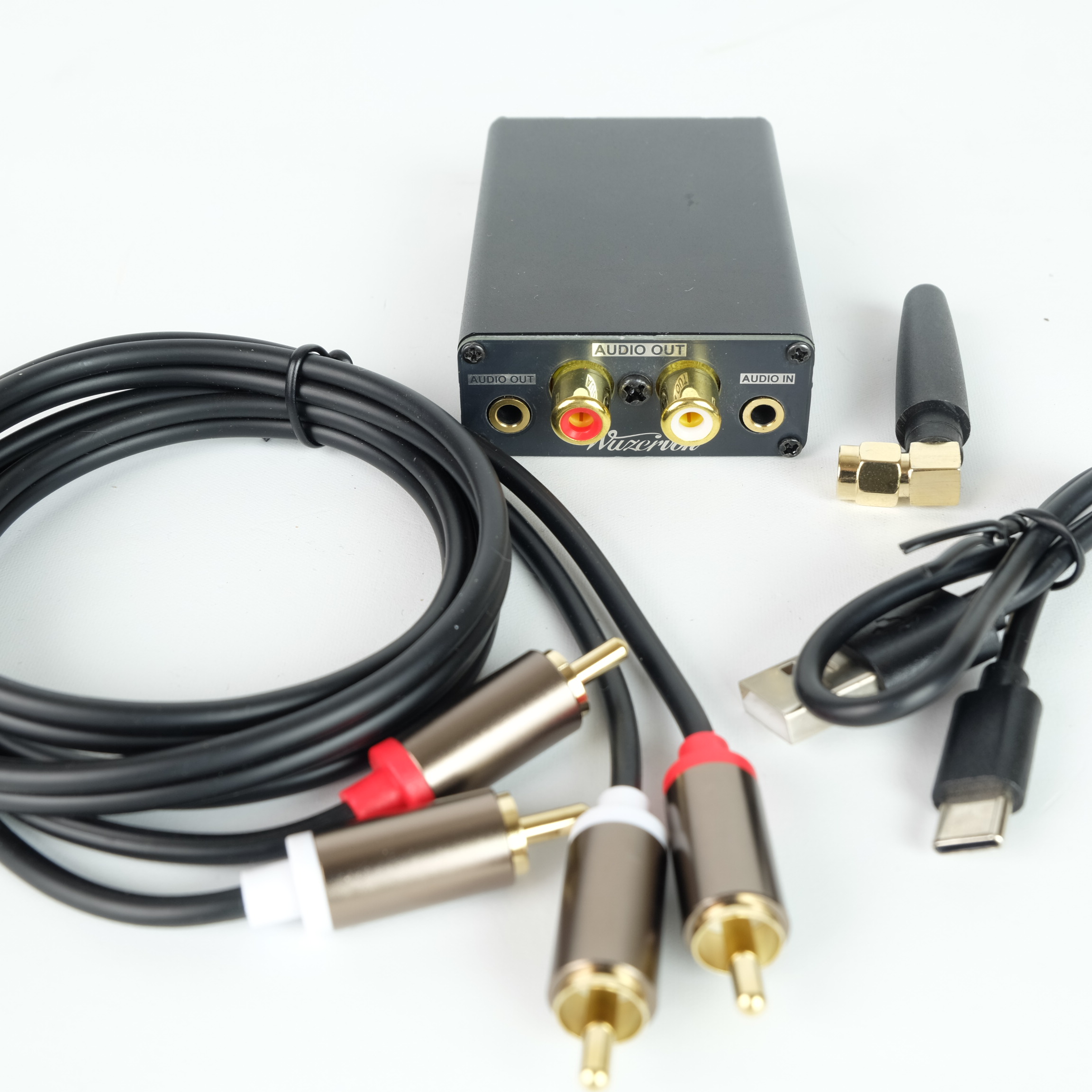

Package includes:

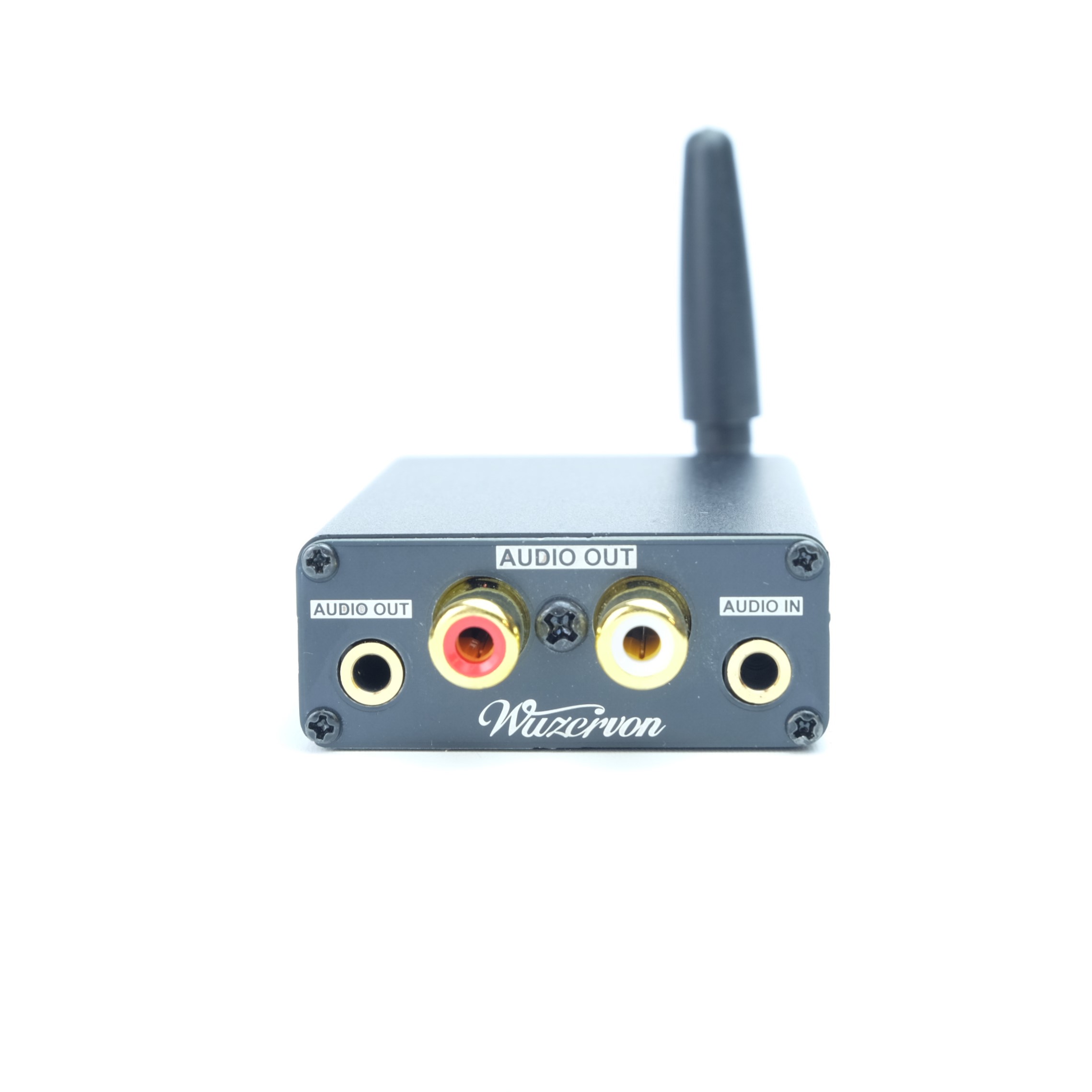

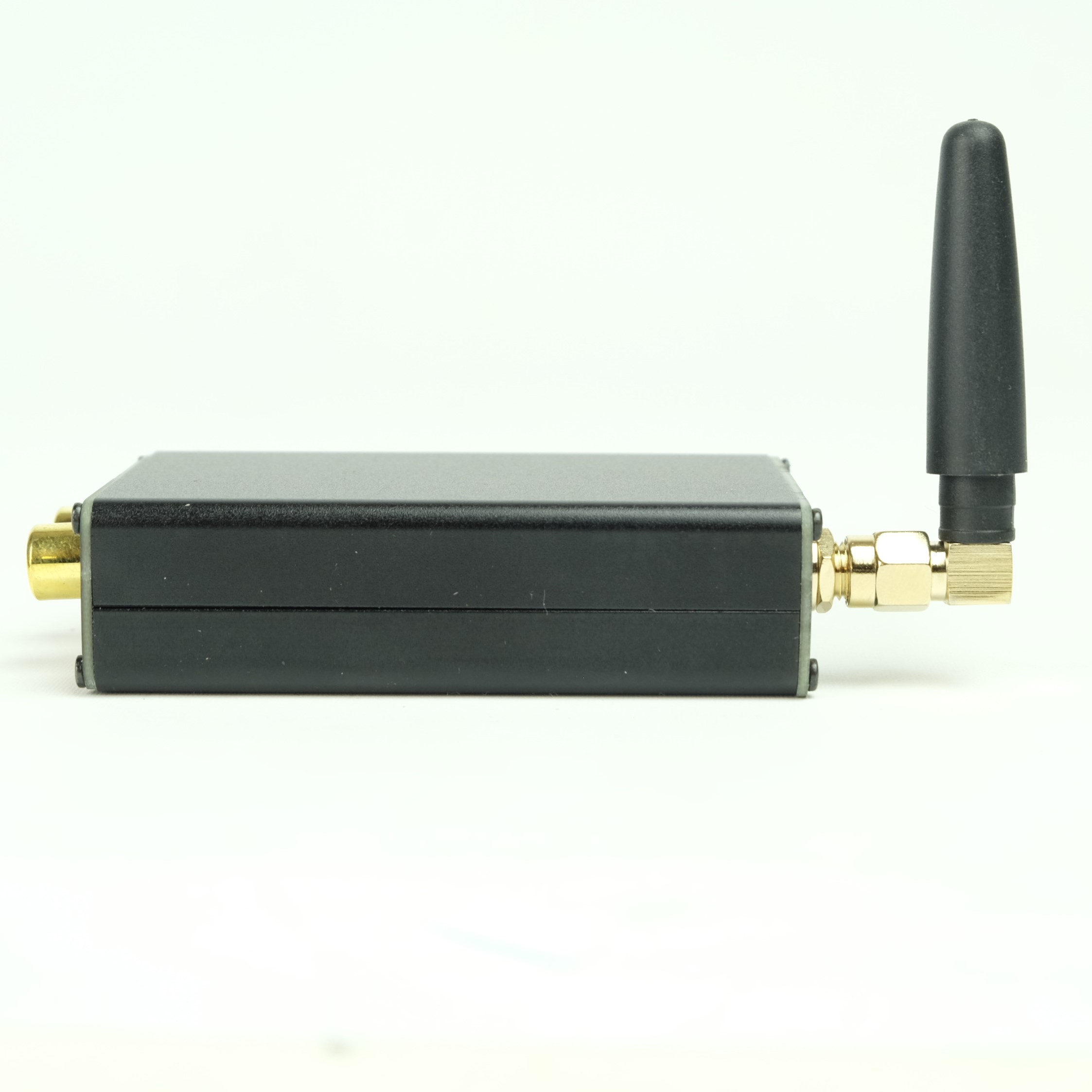

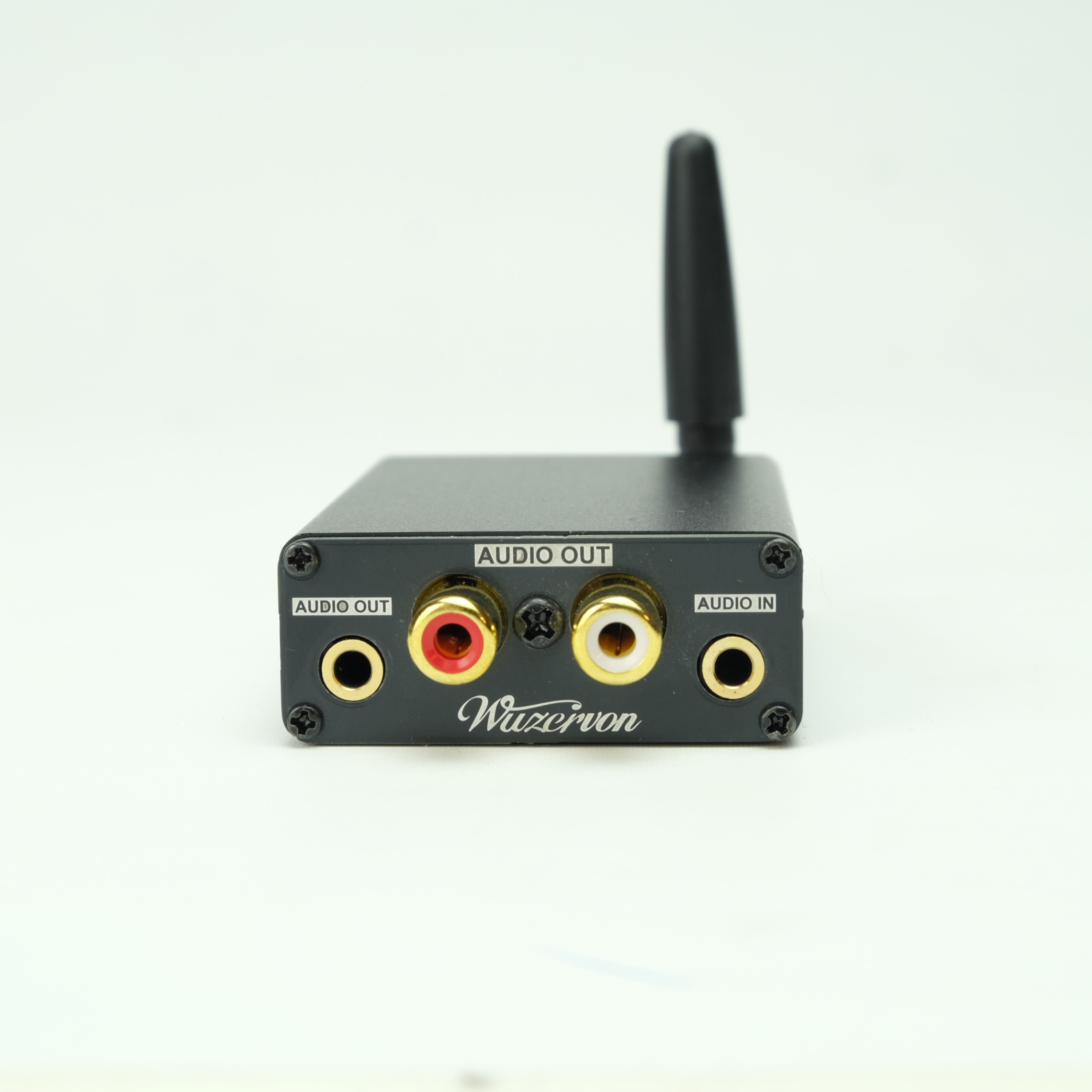

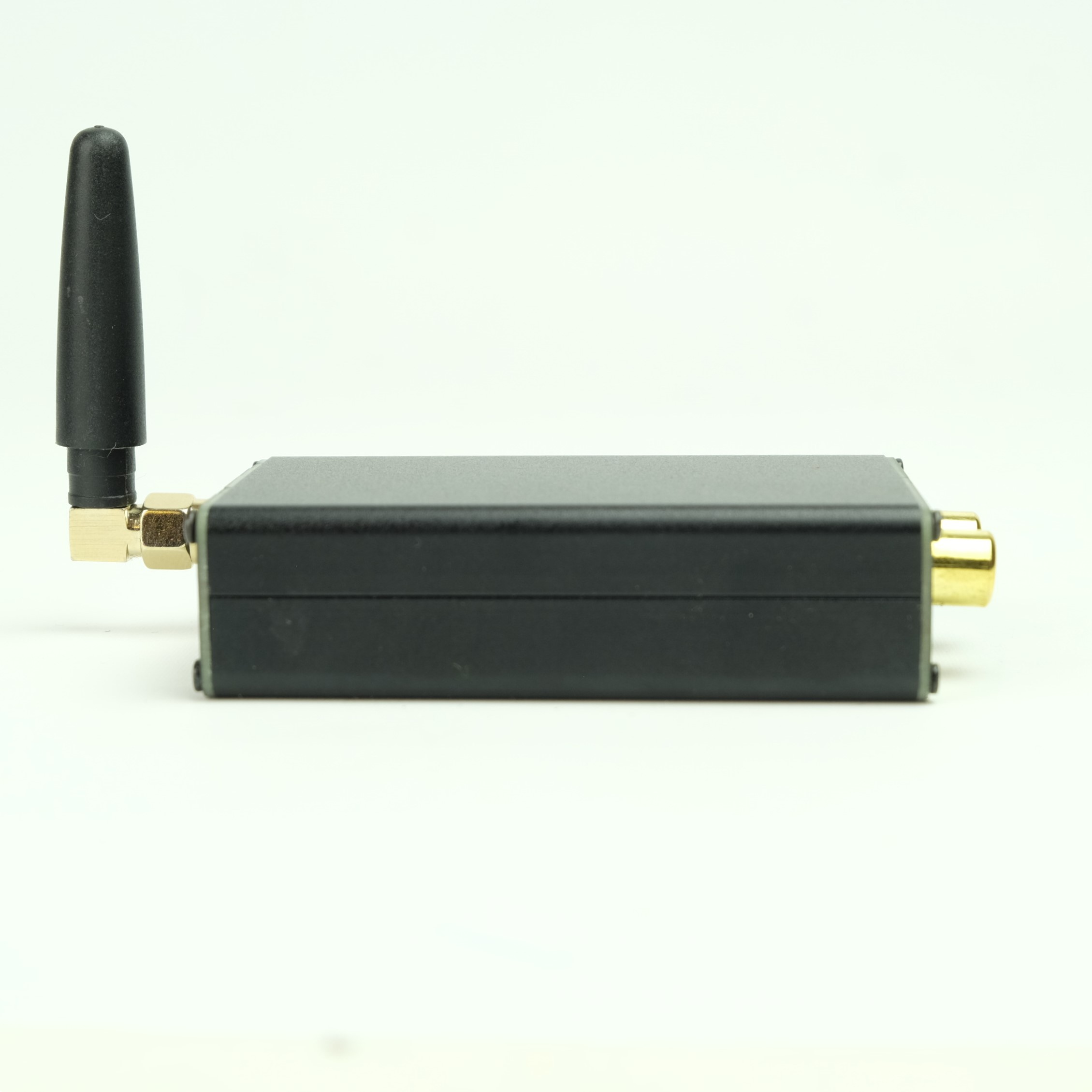

1 x ZK-QCC5125 Audio Interface – 7.5cm long / 5cm wide / 2cm thick. Antenna length – 5cm
1 x High-Quality RCA amplifier interconnect lead – 1m length
1 x 1A USB-C data/charging cable
Nb. You’ll need to power this unit – either via a spare USB port on a device close by or a USB wall charging block (not included). Alternatively you can use an external plug-in power supply – see matched items below for the PSU unit we have sourced in NZ for this purpose. Or if you’d prefer to source this yourself – specs are 8-15 VDC 1A using a DC5.5-2.1 plug type.
User Manual included – prepared by FiF – outlines use & features.
