Fabulous condition. Classic overstated audio, but built to do it’s job extremely well, which it does.

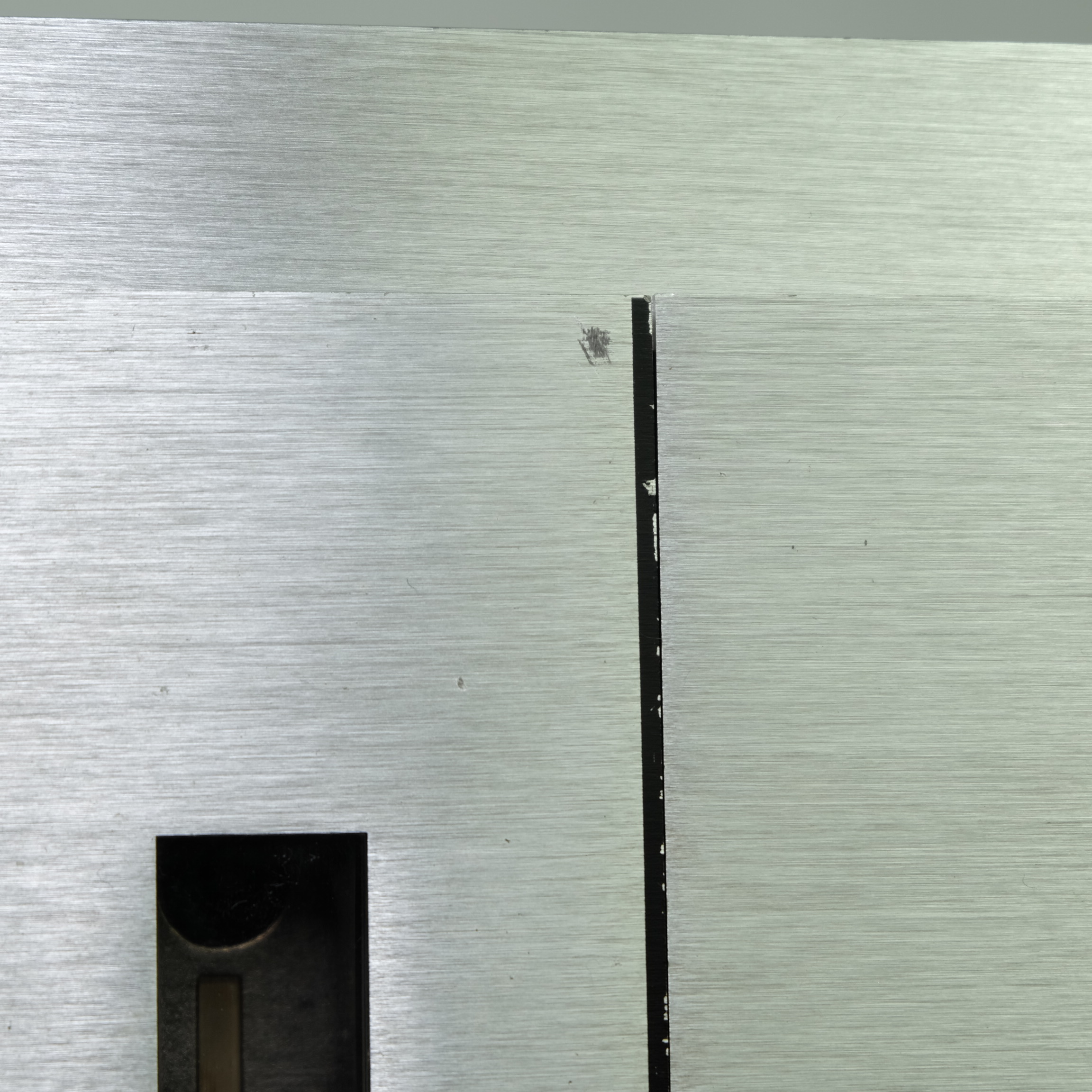

NB. Small scuff on cassette door – see close up pic.
Exhaustively serviced & tested – this unit works just as it should. Magic touch controls, pitch control.

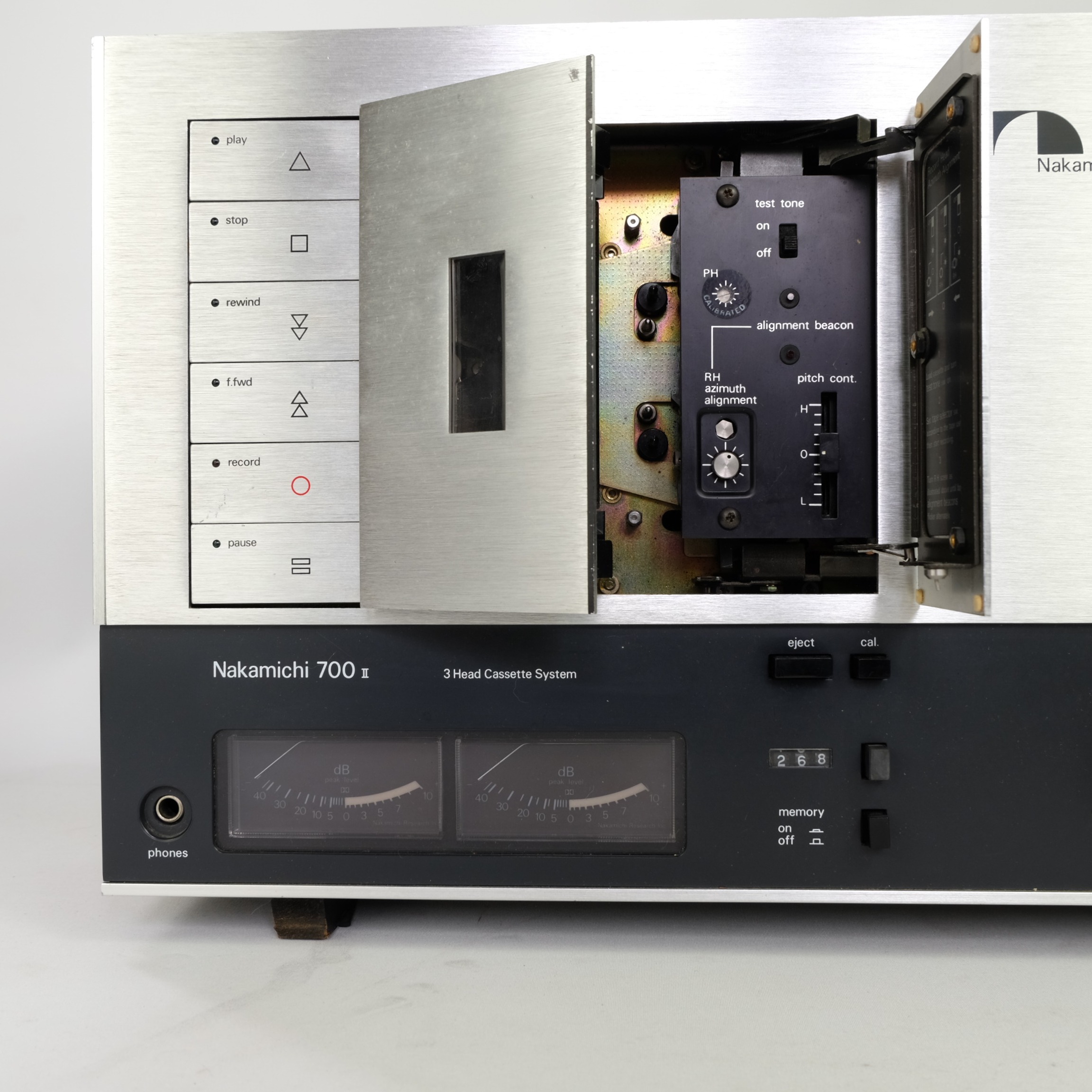

Even a magic fold-out door to access calibration functions. Allowing record azimuth trimming using the convenient guiding LEDs.
The identifier of Tri Tracers are three separate heads – erase, record and playback. The same configuration employed in professional reel-to-reel decks.
12-month warranty
Specifications:
Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x record, 1 x playback, 1 x erase
Tape Type: type I, CrO2
Noise Reduction: B
Frequency Response: 35Hz to 20kHz (Cr02 tape)
Signal to Noise Ratio: 65dB (dolby B)
Wow and Flutter: 0.05%
Total Harmonic Distortion: 1.5%
Input: 50mV (line), 0.2mV (mic)
Output: 1V (line)
Semiconductors: 138 x transistors, 54 x diodes, 9 x IC
Dimensions 52cm wide / 27cm tall / 13cn deep
Weight: 13Kgs

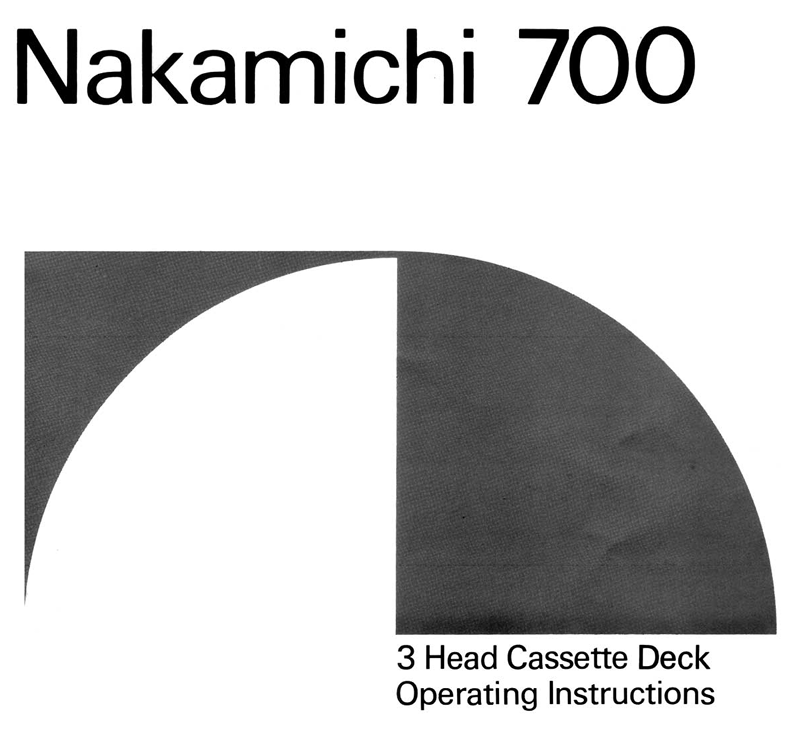

User manual on soft copy
